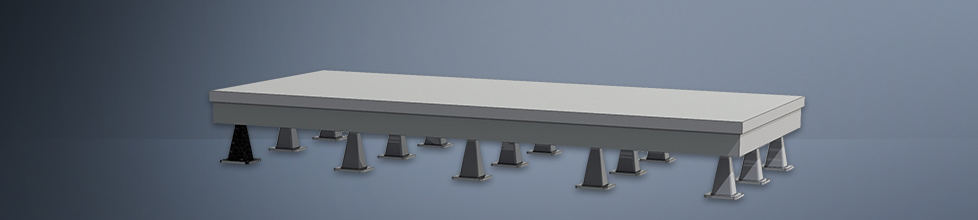

Rýsovací desky

Typu ARP

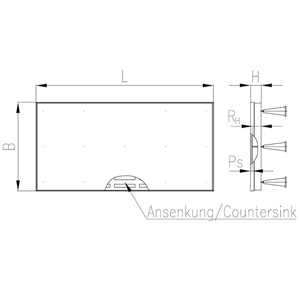

ID	L [mm]	B [mm]	H [mm]	P_s[mm]	R_H[mm]	F_N[ks]	G [kg]
ARP150/100-3	1500	1000	215	40	175	5	820
ARP200/100-3	2000	1000	245	40	205	5	1120
ARP200/125-3	2000	1250	250	50	200	6	1600
ARP200/150-3	2000	1500	200	50	200	5	2040
ARP200/200-3	2000	2000	250	50	200	5	2530
ARP250/100-3	2500	1000	250	50	200	6	1730
ARP250/125-3	2500	1250	250	50	200	6	2020
ARP250/150-3	2500	1500	250	50	200	8	2470
ARP250/200-3	2500	2000	250	50	200	8	3200
ARP300/100-3	3000	1000	250	50	200	6	2100
ARP300/125-3	3000	1250	250	50	200	6	2450
ARP300/150-3	3000	1500	250	50	200	8	2980
ARP300/200-3	3000	2000	300	50	250	8	3940
ARP300/250-3	3000	2500	300	50	250	9	5100
ARP300/300-3	3000	3000	350	50	300	13	6190
ARP350/100-3	3500	1000	250	50	200	8	2460
ARP350/150-3	3500	1500	250	50	200	11	3500
ARP350/200-3	3500	2000	300	50	250	11	4630
ARP350/250-3	3500	2500	300	50	250	12	5970
ARP400/100-3	4000	1000	250	50	200	8	2820
ARP400/150-3	4000	1500	250	50	200	11	4000
ARP400/200-3	4000	2000	300	50	250	11	5300
ARP400/250-3	4000	2500	300	50	250	12	6850
ARP400/300-3	4000	3000	350	50	300	18	8320
ARP450/150-3	4500	1500	250	50	200	11	4450
ARP450/200-3	4500	2000	300	50	250	11	5850
ARP450/250-3	4500	2500	300	50	250	12	7600
ARP450/300-3	4500	3000	350	50	300	18	9200
ARP500/100-3	5000	1000	300	50	250	10	3780
ARP500/125-3	5000	1250	300	50	250	14	4750
ARP500/150-3	5000	1500	300	50	250	14	5330
ARP500/200-3	5000	2000	300	50	250	14	6540
ARP500/250-3	5000	2500	300	50	250	15	8500
ARP500/300-3	5000	3000	350	50	300	23	10230
